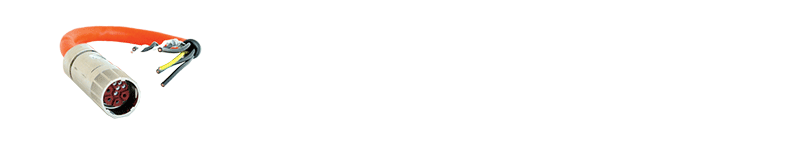

AB Assemblies for Rockwell Automation Motors: VPL Series Motors

All assemblies feature Lapp cable.
All overmolded products are molded with UL 94 V0 PVC.

Replace "xxx' in Lapp part number with desired cable length in feet.

Feedback & Power Cable Assemblies- New Generation

• Overview
• MP Series Motors

• TLY Series Motors
• VPL Series Motors

Legacy Feedback & Power Cable Assemblies

• Overview
• MP Legacy Series Motors
• MPF Legacy Series Motors
• TL Legacy Series Motors
• H/F Series Motors
• Y Series Motors
• H Series Motors
• N Series Motors
• Ultra 100/200 Series Motors

Motion Type	Application	Jacket Color	Jacket Material		Approvals
Motion Type	Application	Jacket Color	Jacket	Insulation	Approvals
VPL Series Motors
Stationary	Power/Power with brake & Feedback	Orange	PVC	Polypropylene	UL/c(UL) Recognized, CE
Continuous Flex	Power/Power with brake & Feedback	Orange	PUR	Polypropylene	UL/c(UL) Recognized, CE

Motion Type	Lapp Part Number	Rockwell Part Number
Power & Feedback
Flexing	53517xxx-16	2090-CSWM1DF-18AFxx
Flexing	53519xxx-16	2090-CSBM1DF-18AFxx
Flexing	53517xxx-14	2090-CSWM1DF-14AFxx
Flexing	53519xxx-14	2090-CSBM1DF-14AFxx
Stationary	43517xxx-16	2090-CSWM1DF-18AAxx
Stationary	43517xxx-14	2090-CSWM1DF-14AAxx
Stationary	43519xxx-16	2090-CSBM1DF-18AAxx
Stationary	43519xxx-14	2090-CSBM1DF-14AAxx

Photographs are not to scale and are not true representations of the products in question. If not otherwise specified, all values relating to the product are nominal values.

Rockwell and Allen-Bradley are trademarks of Rockwell Automation, Inc.
