Lapp Systems



BUS Assemblies
Highly flexible or stationary BUS cordset assemblies

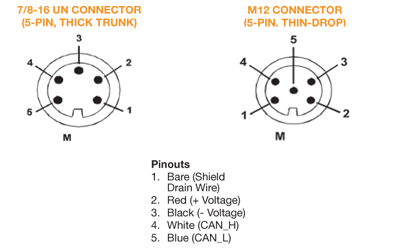

Devicenet Assemblies
Devicenet assemblies These flexing molded cordsets offer Trunk(Thick) and Drop(Thin) connectivity in a
DeviceNet™ application. Our flexing solutions offer the ability to connect in a motion
system such as X,Y,Z motion equipment. The Static versions offer the same functionality as the flexing in terms of connectivity but in a stationary environment. A conveyor system is a good example of use for this product.

AVAILABLE CONFIGURATIONS:
• Single Ended Cordsets with 7/8" Connectors

• Extension Ended Cordsets with Thick Panel Mount Receptacles

• Thick Trunk Extension Ended Cordsets

• Thick Back Panel Mount Trunk Extension Cordsets

• Thin Drop Single Ended Cordsets

• Thin Drop Single Extension Cordsets

Note: Thick = 7/8" Connector; Thin = M12 Connector

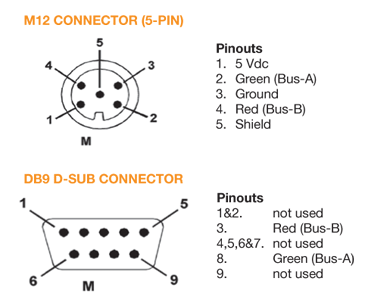

PROFIBUS Assemblies

Flexing: These pretested, molded cordsets utilize high quality continuous flex cable
and integral molded strain relief. They are designed to provide interconnection between simple devices, such as sensors and actuators and high level devices, such as PLCs and computers, in high motion applications.

Static: When continuous flexing is not required, these cordsets offer long-lasting,
reliable performance at a reduced cost.
AVAILABLE CONFIGURATIONS
• Single Ended Cordsets - M12 Euro to Flying Leads

• M12 Euro Male to Female Cordsets

• Panel Mount Receptacle with Jacketed Cable

• Sub D Y-Cordsets: D'Sub to Two M12 Euro Connectors

• D'Sub to One M12 Euro Connector or Flying Leads
ETHERNET Assemblies
ethernet assemblies
CAT5 Network environments can be found throughout the factory floor. The use of both the RJ45 and M12 connector protocols are common. Our continuous flex CAT5 cable offers a unique solution toward satisfying the stringent needs of motion systems, where a network connection has been integrated for program interface from remote locations. Offering is designed for continuous flex applications but static can also be supported.
