Lapp Systems

Servo Cable Assemblies for Highly Flexible Applications
according to LENZE^® Standard

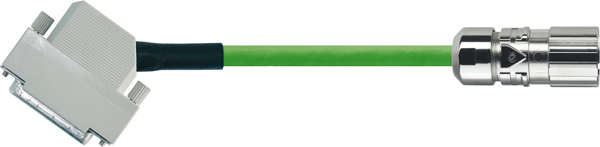

LEnze style assembly


Technical Data:
	Minimum Bend Radius
	- for continuous flexing:	10 x cable diameter
	- for stationary use:	7.5 x cable diameter

	Temperature Range:
	- for flexible use:	-5°C to +70°C
	- for stationary use:	-25°C to +80°C

	Nominal Voltage:
	- Resolver & encoder cable
	- VDE:	30V
	- UL/CSA:	300V
	- Motor cable
	Power conductors:
	- VDE:	600/1000V
	- UL/CSA:	600V

	Test Voltage:
	- Resolver and Encoder Cable:	1.5 KV
	- Motor Cable:
	Power Cores:	4 KV
	Control Cores:	2 KV

	Approvals:
	- Resolver and Encoder Cable:
	UL AWM:	- AWM 21165 (flexing)
		- AWM 2464 (stationary)
	- Motor Cable:
	UL AWM:	- AWM 20940 (flexing)
		- AWM 2570 (stationary)

Part #	Application Type	Length in mm	Lenze item designation	Number of Conductors and mm per conductor
Servo cables
74321272	Flexing	10	EWLM-010GMS015	16 AWG/4c + 20 AWG/1pr
74321426	Flexing	10	EWLM-010GMS-025	14 AWG/4c + 20 AWG/1pr
74320320	Stationary	10	EWLM-010GM-015	16 AWG/4c + 20 AWG/1pr
74320499	Stationary	10	EWLM-010GM-025	14 AWG/4c + 20 AWG/1pr
70415002	Stationary	10	EYP-0003-A-0100-M01-A00	16 AWG/4c
Fan Cables
74322629	Flexing	10	EWLL-010GMS	20 AWG/5c
70415001	Flexing	10	EYL-0001-V-0000L02-J02	19 AWG/5c
74322480	Stationary	10	EWLL-010GM	20 AWG/5c
Resolver cables
74323073	Flexing	10	EWLR-010GMS-T	26 AWG/3pr + 20 AWG/1pr
70415005	Flexing	10	EYF-0020-A-0100-F01-S04	26 AWG/3c + 26 AWG/3pr
74320540	Stationary	10	EWLR-010GM-T	26 AWG/3pr + 20 AWG/1pr
Encoder cables
74323672	Flexing	10	EWLE-010GMS-T	26 AWG/4pr + 18 AWG/1pr
74323522	Stationary	10	EWLE-010GM-T	26 AWG/4pr + 18 AWG/1pr

* other lengths available
