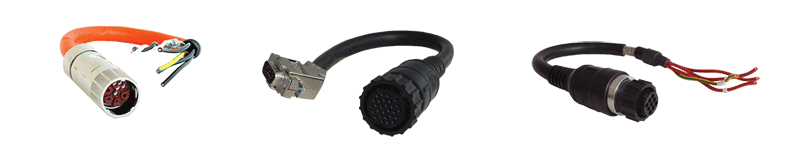

AB Assemblies for Rockwell Automation Motors: TLY Series Motors

All assemblies feature Lapp cable.
All overmolded products are molded with UL 94 V0 PVC.

Replace "xxx' in Lapp part number with desired cable length in feet.

Feedback & Power Cable Assemblies- New Generation

• Overview
• MP Series Motors
• TLY Series Motors
• VPL Series Motors

Overview of Legacy Feedback & Power Cable Assemblies

• Overview
• MP Legacy Series Motors
• MPF Legacy Series Motors
• TL Legacy Series Motors
• H/F Series Motors
• Y Series Motors
• H Series Motors
• N Series Motors
• Ultra 100/200 Series Motors

Motion Type	Application	Jacket Color	Jacket Material		Approvals
Motion Type	Application	Jacket Color	Jacket	Insulation	Approvals
TLY Series Motors
Stationary	Feedback	Gray	PVC	TPE	UL/CSA
Stationary	Power	Black	PVC	PVC/Nylon	UL/CSA TC-ER
Stationary	Power with Brake	Black	PVC	PVC/Nylon	UL/CSA TC-ER
Continuous Flex	Feedback	Black	PVC	PVC	UL/CSA CMG
Continuous Flex	Power	Black	PVC	PVC	UL/CSA
Continuous Flex	Power with Brake	Orange	TPE	PVC	UL/CSA TC-ER

Motion Type	Lapp Part Number	Rockwell Part Number
Power
Flexing	72505xxx	2090-CPWM6DF-16AFxx
Stationary	62505xxx	2090-CPWM6DF-16AAAxx
Power with Brake
Flexing	74505xxx	2090-CPBM6DF-16AAxx
Stationary	64505xxx	2090-CPBM6DF-16AAxx
Feedback
Flexing	72515xxx	2090-CFBM6DD-CCAFxxx
Flexing	72514xxx	2090-CFBM6DF-CBAFxx
Stationary	62515xxx	2090-CFBM6DD-CCAAxxx
Stationary	62514xxx	2090-CFBM6DF-CBAAxx

Photographs are not to scale and are not true representations of the products in question. If not otherwise specified, all values relating to the product are nominal values.
