Lapp Systems



BUS Assemblies
Highly flexible or stationary BUS cordset assemblies

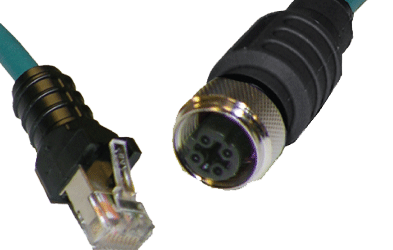

ETHERNET Cordsets
ethernet assemblies
CAT5 Network environments can be found throughout the factory floor. The use of both the RJ45 and M12 connector protocols are common. Our continuous flex CAT5 cable offers a unique solution toward satisfying the stringent needs of motion systems, where a network connection has been integrated for program interface from remote locations. Offering is designed for continuous flex applications but static can also be supported.
AVAILABLE CONFIGURATIONS

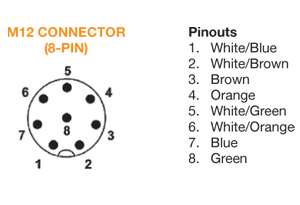

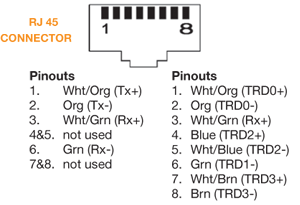

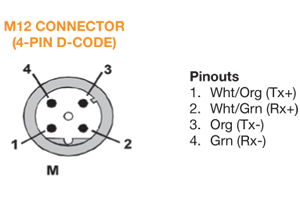

Ethernet M12 8 Pos. Pin Outs Ethernet M12 4 Pos. D-Code Pin Outs Ethernet RJ45 Connector Pin Outs
