The Importance of Oil Resistant Cables
2010 Edition White Paper
By
John Gavilanes
Director of Engineering

Introduction

The demands of the industrial environment are on going, with ever changing trends. Cables, which were once able to sustain functional and operational integrity a decade ago, would not be adequate to survive in the environment of a present day manufacturing site. Everywhere, from the Renewable Energy Industry, Automotive Assembly Plants, to the factories that manufactures small office machines and even in some commercial buildings, the oil resistance of cables has become increasingly important. Oils serve a dual-purpose role in industrial applications, both as a coolant and lubricant, depending upon the requirements mandated by the end use application. Sustaining trouble free cable operation under harsh chemical and environmental conditions reduces costly manufacturing down time and helps to eliminate or minimize periodic maintenance and costly cable replacement. All of these factors mentioned play a major role that is critical to a consistent, smoothly run manufacturing operation, which in the end, results in higher profit margins.

Regulatory and Code Changes

With the changes to the National Electrical Code (NEC) in the past 10 years, protective conduit or raceway is no longer required when running an exposed run (-ER) cable from the tray to the equipment or device. Previously, when the cable was extended from tray to machine, conduit or
raceway was used primarily as a protection mechanism in helping to prevent cable damage. Originally TC-ER cable (previously printed “open wiring”) had a length limitation of 50 ft. from the tray to the equipment. The 50 Ft. allowances resolved a large “grey” area in the industrial environment and was initially a well-received solution by the industry. Due to the overwhelming acceptance of the 50 ft. length allowance, the NEC committee enacted further changes shortly thereafter, permitting unlimited length of TC-ER under Article 336. With the advent of unlimited length, Article 336 also brought other issues, like a greater area of cable exposure and susceptibility to the surrounding industrial environment. Under the typical conditions of operation, consideration for factors such as ambient temperature, a cables mechanical strength, unintended movement and constant exposure to industrial lubricating and coolant oils must be taken into account. When exposed to these conditions, the cable inevitably will begin to deteriorate; the overall jacket may swell and/or crack, creating a potentially hazardous condition, along with machine and production down time. These possible problems are undesirable and necessitate the need to implement cable protection measures. When referring to NFPA 79, the electrical standard for industrial machinery, Machine Tool Wire (MTW) is one type of cable permitted. Under the standard for machine tool wire, UL 1063, passing the Oil Res I test is required and further severe testing such as the Oil Res II is optional. Environmental resistance tests, such as those per UL Standards were implemented in response to the globalization of industry with the goal of standardizing the oil resistance requirements of cables used in manufacturing industrial machinery throughout the world.

Purpose and Application

Why does oil cause such excessive damage on certain types of insulations and jackets and how does this occur? All compounds are not the same, for example, certain types of PVC have a higher degree of flame resistance, while others have better oil resistance, and some demonstrate improved flexibility characteristics. PVC formulations vary greatly, depending on the desired properties and applications. These properties can be achieved by adjusting the formulations of a particular PVC compound. The modification or addition of flame-retardants (iodine), stabilizers, and fillers allow the compound to exhibit these types of enhanced characteristics. However, when certain PVC characteristics are improved, the enhancement sometimes comes at a cost, the cost being that other performance traits are affected or completely lost.

The specific application will determine if oil is used as a lubricant and/or coolant. Acting as a lubricant, oil would be applied to a gear system driven by motors to prevent premature wear down and insure smooth operation. Acting as a coolant, oil is applied during the machine lathing process to
keep metal from becoming too hot. In the field, cables can be exposed to oil in a Wind Turbine nacelle, (the nacelle is the area located on the top of the turbine) where oil is used in the gearbox. Cables that lay in the floor of the nacelle are subjected to oil that is unavoidably spilled. These cables are then exposed to oil for very long periods of time, along with other extreme high and low temperatures causing the lower quality jacket compounds of a cable to crack. There are many factors involved regarding how oil will attack wire and cable, such as, exposure, ambient temperature and also possible continued immersion. In general, increases in the amount of exposure, the frequency and the ambient temperature, the faster oil will start the deterioration process. In short, oil attacks the insulating compound, where it will become virtually ineffective in its primary role as an effective insulator. This action can create a possibly very hazardous situation, not only to human life, but also to the overall function of the industrial machinery to which it is connected. This results in very expensive downtime, costly repair and in the worst-case scenario, entire replacement of the machine.

What Happens

All wire and cable insulations are not created equal. Electrical, environmental, mechanical, and chemical attributes will vary depending upon the individual compound formulations. Insulating compounds contain a specific amount of plasticizers in their individual formulations, which help promote flexibility and resistance to fatigue. When compounds are exposed to lubricating and coolant processing oils the material either absorbs the oil or the plasticizer will diffuse from the compound. When oil is absorbed, it causes severe swelling and softening of the compound resulting in degradation of tensile properties. When the oil causes diffusion of the compound plasticizer, hardening will result and all flexibility and elongation properties are lost. The attached pictures will illustrate the effects that oil can inflict on cable jackets and insulation:


Oil Diagram

Step 1: When process oils come in contact with PVC & Polyolefin compounds, the process oils are attracted to the plasticizers in the cable.

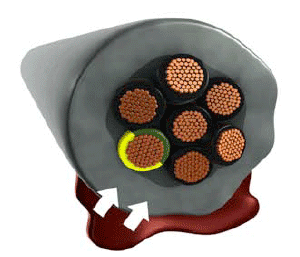

Step 2: The oils can be absorbed
by a Polyolefin material resulting in
swelling and weakening of the
cable jacket.

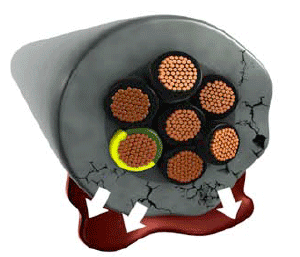

Step 3: The oils can extract the
plasticizers from PVC materials
making the cable jacket hard and
lead to failures.
Oil Sample

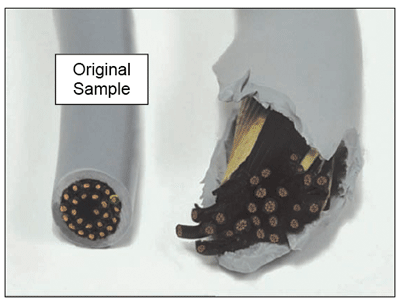

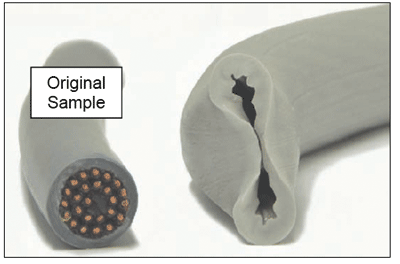

Cracking – Caused during exposure of the PVC to oil or other chemicals due the complete removal of plasticizers, resulting in hardening and eventual cracking of the insulation and jacket.

Melting – Caused during exposure of the PVC to oil or other chemicals due to the absorption and combination with the plasticizer, resulting in softening and the high elasticity noted in the compound.

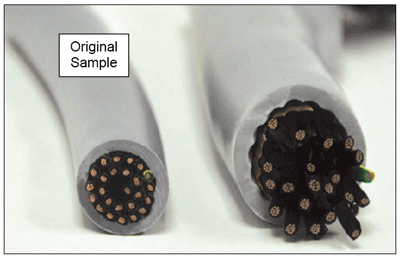

Swelling – Caused during exposure of the PVC to oil or other
chemicals due to migration of the oils into the plasticizer, resulting in noticeable increases in insulation and jacket diameter.

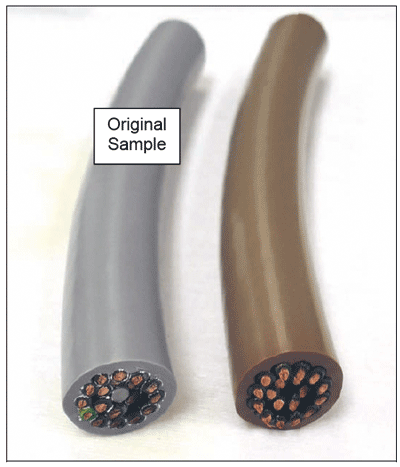

Discoloring – Caused during the exposure of the PVC to oil or other chemicals due to the diffusion of the plasticizers along with colorant from the insulation and jacket.

The preceding pictures verify the damage caused by oil exposure is irreversible and createshazardous conditions. Now, in addition to cable replacement costs, there is also the expense of reinstallation to be taken into account. To avoid these types of unwanted scenarios, the customemust review the properties of the cables they are about to consider for their application and determine suitability for the oil environment. There are UL tests, which help determine how a cable will react in the industrial oil environment. These tests are more commonly referred to as the Oil Res I and Oil Res II tests, which involve continuous immersion of the cable samples in IRM 902 at elevated temperatures for a specified period of time. Passing results are determined by the evaluation of mechanical properties and observations of physical damage caused by the oil exposure. In 2000, Lapp as an innovator and leader, approached UL about creating tougher standards which resulted in the creation of AWM style 21098.The table below indicates the industry standard tests that are used to evaluate wire and cable oil exposure performance:

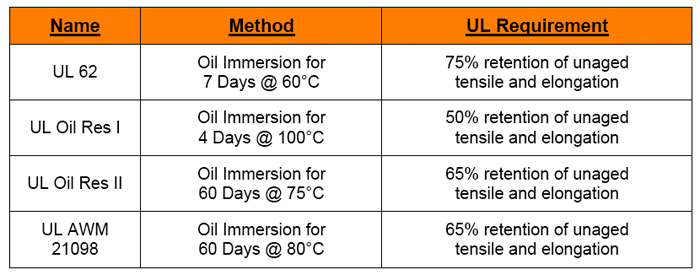

Industry Oil Exposure Tests


Example of Tensile and Elongation Test Methods

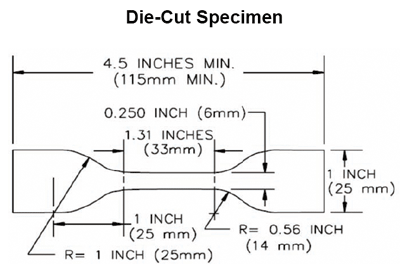

Let us assume, for example, that the cable jacket of your product is going to be tested for compliance to UL Oil Res II. Tensile and Elongation tests must be performed both on the original (unaged) and oil immersed (aged) test samples and must be prepared as defined under UL Standard 2556. Die cut dumbbell specimens are taken from the jacket and are then tested for tensile strength and elongation. As for sample preparation, two marks are applied approximately 1.3 inches apart from each other and equidistant from the center of the dumbbell sample. (See diagram on next page). These marks are applied at right angles to the direction of the pull in the testing apparatus. The sample is then clamped on the tester with one-inch marks outside of and between the grips. The grips are then separated at the rate of 20 inches per minute until the sample breaks. Results are then recorded for elongation and pound force breakage; tensile strength is calculated by dividing the pound force by the cross sectional area of the specimen.

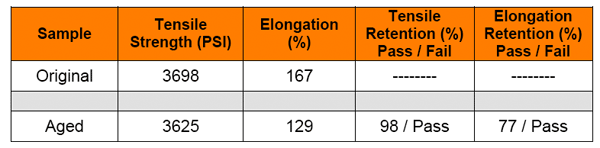

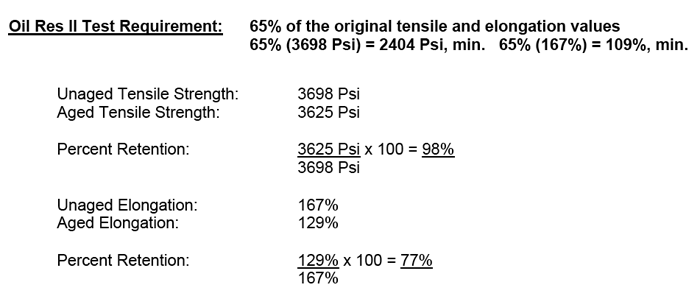

Untested die cut samples are aged under the UL Oil Res II requirement of 75°C for 60 days. After 60 days, the samples are removed from the oil for a minimum of 16 hours. They are then tested for tensile and elongation, which must retain 65% of the unaged values. The following is an example for an Oil Res II test results:



Conclusion

The oil resistance of cables has now become a critical performance parameter when electrical contractors, engineers, and installers specify cables for end use application designs. The continued growing popularity of oil resistance requirements is due to changes in standard regulations and the increased performance characteristics that are mandated by certain industries: Renewable Energy, Automotive Assembly Plants and other production facilities. As time moves forward, superior oil resistant cables will become standard, rather than the exception and the demand for this type of operating performance will only continue to grow.

The Lapp Group is a family run company that provides cable products, not only in North America, but also throughout the entire world. We have established a laboratory in the US that is devoted entirely to the testing, research and development of wire and cable. Brand new state of the art equipment provides the highest degree of accuracy and insures that all tests performed are compliant with the rigid performance requirements mandated by UL Standards. The laboratory has attained acceptance to the UL Client Test Data Program. This is a milestone that is unique in the wire and cable industry. The Lapp Group's laboratory is another distinctive element, which helps to exemplify our commitment to providing products that are designed and tested to a higher standard. All of these factors show why Lapp is known as the leader in the wire and cable industry.

The Lapp Group has been providing oil resistant wire and cable products for the past 50 years and will continue being the industry leader in the future. Lapp Group is ahead of the pack and has already made the commitment to service industries that are directly affected by these new oil resistant requirements. The numerous cable designs within our product family groups offer varying degrees of oil resistance combined with other premium characteristics to better serve the needs of industry today and in the future. Please see the next page for cables offered by Lapp Group that provide varying degrees of protection for any industrial environment.
