Heat shrinkable tubing is sold in its Expanded I.D. state. The application of heat activates the tubing's memory, causing the expanded tubing to "recover" or shrink down. When fully recovered, the tubing will shrink down to the Recovered I.D. When shrinking tubing, it is highly recommended to adhere to the estimated shrink temperature. |
|
| OLFLEX® TUBING is available in three heat shrink ratio varieties. | |
 |
Tubing will shrink down approximately 50%. |
 |
Tubing will shrink down approximately 67%. |
 |
Tubing will shrink down approximately 75%. |
As the tubing recovers, the tubing wall thickens. A small reduction in the tubing length known as When covering multiple substrates, you must consider the larger sized substrate that needs to be |
|
2:1 Shrink Ratio Example: OLFLEX® 190, PN 601612 - Nominal O.D. 0.524 inch *Note the cable O.D. is a nominal value that can vary roughly 5% Rule of thumb: The Recovered I.D. should not be larger than the substrate O.D. Choose tubing with a Recovered I.D. that is approximately 20-25% smaller than the substrate's O.D. For example, Cable O.D.- .524" X .80 = .419, Cable O.D.- .524" X .75 = .393 |
|
|
Tubing will shrink down approximately 50%. .75" tubing size x .5 = .375 |
Choice: The 3/4" size will adequately meet the shrink tube requirements. |
|

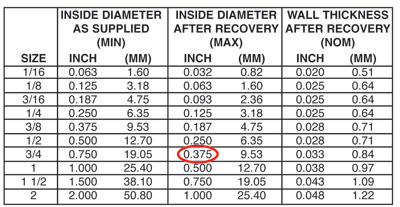

| Shrink Ratio Example |
 |
| For an O.D. of .524 inches and 2:1 Shrink Ratio, the recommended tubing size would be 3/4" | |
  |
||
 |
||
