Assemblies for Rockwell Automation/ AB Motors |
 |
For Motor Types: MPL, N, H, H/F, Y, MPF, TLY, Ultra 3000/5000, and Kinetix 6000
• Use of various cable types, including custom encoder for flex and static,
ÖLFLEX® FD 190 CY, ÖLFLEX® FD 890 CY, & various servo styles such as
ÖLFLEX® 709 CY, ÖLFLEX® Servo LK, & ÖLFLEX® Servo FD LK
• Overmolded for better environmental protection and integral strain relief
• Long service life |
 |
Min. bend radius for installation:
|
10 x cable diameter |
Bending radius factor during test: |
7.7 x outer diameter |
Travel Distance Under Test Conditions: |
18 Feet |
Acceleration under Test Conditions: |
Varied up to 26 feet per second |
Temperature range during Test: |
-10°C to +22°C |
Working Voltage: |
Up to 1000 V |
| Speed of Travel During Test: |
Varied from 6.5 to 13 feet per second |
Test Results (# of Cycles): |
8,340,142 |
* For reference only, test data varies changes depending on cable. |
Assemblies for Siemen's Motors |
 |
Designed to Standard 6FX8002 & Standard 6FX5002
Applications:
• Sensor leads for signal requirements
• Motor connection cables for power
requirements
• The oil-resistant PVC or PUR cable
jacket allows them to be used
particularly in iindustrial areas
|
|
Approvals:
|
|
• Power Cables |
UL Style 20234; CSA AWM II A/B FT1 |
• Signal Cables: |
UL Style 20236; CSA AWM II A/B FT1 |
Minimum Bend Radius: |
|
• Stationary: |
6 x cable diameter |
• Flexible: |
10 x cable diameter |

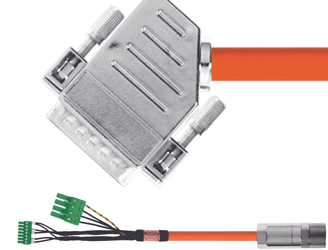

Assemblies for Indramat's Motors |
 |
Designed to IKG/IKS Standard
Applications:
• Motor connection cables for power requirements
• Highly flexible servomotor cable, especially suitable for use in power chains. 100%
compatible with
Indramat systems. The oil-resistant,
PUR jacket enables use in industrial
areas.
|
|
Approvals: |
|
• Power Cables: |
UL Style 20234; CSA AWM II A/B FT1 |
Minimum Bend Radius: |
|
• Signal Cables: |
UL Style 20236; CSA AWM II A/B FT1 |
• Flexible: |
< 4.0 mm2: 10 x cable diameter |
| |
> 4.0 mm2: 12 x cable diameter |
|
|
