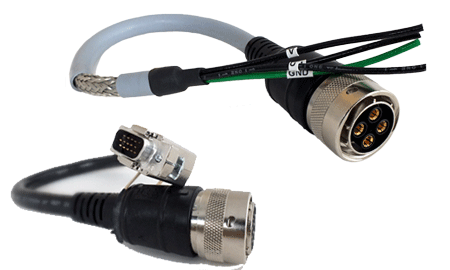

Assemblies by Motor Types for Ultra 3000/5000 & KINETIX Drives
TL Series Motors

		Connector Technical Data:
		- TL Series:	Tyco MATE-N-LOK, Tab locking

		Cable Technical Data:
		- Feedback:	812090, 812308, 811738, 812701
		- Power & Brake:	190 CY, 890 CY, Servo Series

		- Voltage Rating:
		- Feedback:	300V
		- Power & Brake	600V

Jacket Material:		Bend Radius:
- Feedback:	Gray or Black PVC	- Feedback:
- Power & Brake:	- Gray or Black PVC: 190 CY/ 890CY - PUR Lapp Servo	- for stationary use:	10 x cable diameter
		- for flexible use:	12 x cable diameter
		- Power & Brake:	Per specific cable catalog data

TL- SERIES MOTORS- POWER CABLES
	STATIC			FLEXING
ROCKWELL P/N LENGTH IN METERS	LAPP P/N LENGTH IN FEET	LAPP P/N (Raw Cable)		LAPP P/N LENGTH IN FEET	LAPP P/N (Raw Cable)
2090-XXNPT-16SXX	61529XXX-16	601604CY		71529XXX-16	891604CY
2090-DANPT-16SXX	62529XXX-16	601604CY		72529XXX-16	891604CY

TL- SERIES - FEEDBACK CABLE
	STATIC			FLEXING
ROCKWELL P/N LENGTH IN METERS	LAPP P/N LENGTH IN FEET	LAPP P/N (Raw Cable)		LAPP P/N LENGTH IN FEET	LAPP P/N (Raw Cable)
Flying Lead Configuration	61526XXX	812090		71526XXX	811738
2090-XXNFT-SXX	61528XXX	812090		71528XXX	811738
2090-DANFCT-SXX	62528XXX	812308		72528XXX	812701

TL- SERIES BRAKE CABLES
	STATIC			FLEXING
ROCKWELL P/N LENGTH IN METERS	LAPP P/N LENGTH IN FEET	LAPP P/N (Raw Cable)		LAPP P/N LENGTH IN FEET	LAPP P/N (Raw Cable)
2090-DANBT-18SXX	300058-XXX	601803CY		500058-XXX	891803CY

Other Molded Cables Assemblies by Motor Type:
Assemblies by Motor Type with Speedtec Type Connectors:
MP Series	TLY Series
Assemblies by Motor Types for Ultra 3000/5000 & KINETIX Drives:		Assemblies by Motor Types for Ultra 100/200 Drives:
MP Series	MPF Series	F Series Motors
N Series	TL Series	F/H Series Motors
Y Series	H & H/F Series	N Series Motors
