NAVIGATE THE CATALOG BY SECTIONS

Connector Accessories

Adapter Plates

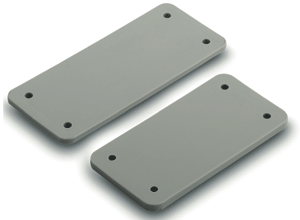

Cover Plates for Panel Cut-Out

Part #	Description	L	L1
10018920	HBE 6 Cover Plate	90.5	70.0
10018921	HBE 10 Cover Plate	103.0	83.3
10018922	HBE 16 Cover Plate	123.5	103.0
10018923	HBE 24 Cover Plate	150.0	130.0


Adapters for Single D'SUB Connectors

Part #	Description	L	L1	L2	L3
11764200	HBE 6 Plate with DB 9 Cut-out	51.3	44.0	25.0	31.4
11764202	HBE 6 Plate with DB 15 Cut-out	51.3	44.0	33.3	39.2
11764300	HBE 10 Plate with DB 25 Cut-out	64.2	57.0	47.1	53.1
11764400	HBE 16 Plate with DB 25 Cut-out	85.0	77.5	47.1	53.6


Adapters for Double D'SUB Connectors

Part #	Description	L	L1	L2	L3
11764201	HBE 6 Plate with 2-DB 9 Cut-out	51.3	44.0	25.0	31.4
11764203	HBE 6 Plate with 2-DB 15 Cut-out	51.3	44.0	33.3	39.2
11764301	HBE 10 Plate with 2-DB 25 Cut-out	64.2	57.0	47.1	53.1
11764401	HBE 16 Plate with 2-DB 25 Cut-out	85.0	77.5	47.1	53.6
