EPIC® Circular Connectors

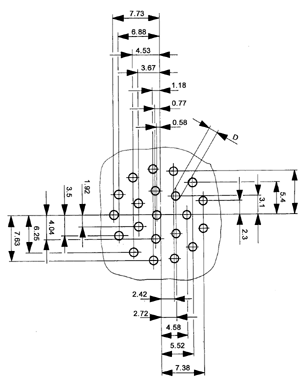

Zylin R3.0 21 Contact Insulation Body

	Rated Voltage:	25V/60V AC/DC
	Rated Current:	7.5A
	Test Voltage:	1.5KV AC
	Insulation:	B: corresponds to equipment used primarily in residential premises, sales or other professional environments, precision engineering workshops, laboratories, testing centers, hospitals, etc.
	Temperature Range:	-40°C to 125°C
	Protection Class	IP 65 - 67 according to DIN 40050 depending on cable gland
	Wire Gauge:	Solder:	up to 1 mm²
	Contact Resistance (mOhm):	Solder:	<3 Ohm
	Housing Material:	Copper Alloy, nickel plated
	Insulation Body Material:	Thermoplast, UL 94 V-0
	Contact Material:	Copper Alloy, gold plated
	Gasket Material:	Neoprene
	Mating Cycles:	500 (higher mating cycles depending on the application)

Clockwise with Solder Contacts
Male	Female
40200121	40250121

Combination Part Numbers
