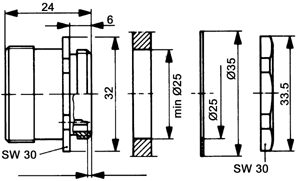

Zylin R3.0 Model G1 Panel Mount Base |
 |
 |
  |
Technical Data |
|||||
| Rated Voltage: | 25V/60V AC/DC | ||||
| Rated Current: | 7.5A | ||||
| Test Voltage: | 1.5KV | ||||
| Insulation: | B: corresponds to equipment used primarily in residential premises, sales or other professional environments, precision engineering workshops, laboratories, testing centers, hospitals, etc. | ||||
| Temperature Range: | -40°C to 125°C | ||||
| Protection Class | IP 65 - 67 according to DIN 40050 depending on cable gland | ||||
| Wire Gauge: | Solder: | up to 1 mm² | |||
| Contact Resistance (mOhm): | Solder: | <3 Ohm | |||
| Housing Material: | Copper Alloy, nickel plated | ||||
| Insulation Body Material: | Thermoplast, UL 94 V-0 | ||||
| Contact Material: | Copper Alloy, gold plated | ||||
| Gasket Material: | Neoprene | ||||
| Mating Cycles: | 500 (higher mating cycles depending on the application) | ||||
Part Numbers |
||
# of Contacts |
Male |
Female |
21 |
00009371 |
00009057 |
26
|
00009894
|
00009005 |
 |
||
Accessories: |
|
|
50206204 |
Sealing Ring: |
|
|
||||||
|
||||||
