EPIC® Rectangular Connectors |

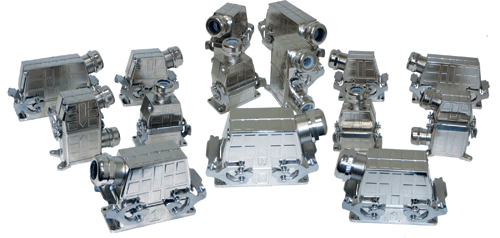

EPIC® ULTRA |
 |
|
Ideal for use in Extreme Environments |
 |
|
 Scratch, impact & corrosion resistant |
||
| Dust, & Water tight to IP 65 |
||
| Immunity from electrical interference |
||
KEY DESIGN FEATURES |
|||
 |
• Nickel-plated Zinc housing • Stainless steel levers • Recessed lip gasket • Integrated base gasket • Mateable with standard housings |
 |
• SKINTOP® BRUSH configuration provides 360 degree low-resistance contact area with cable shield |
 |
|||
 |
• Integrated SKINTOP® gland eliminates
threaded connection • Radial seal on cable jacket & strain relief |
 |
• The brush, in conjunction with the Nickel-plated housing, forms a conductive shell that functions like a Faraday cage to eliminate electrical interference |
|
|||
 |
• Dust & water tight to IP65 • Passes 72 hour salt spray test |
 |
• Recess in hood accepts FLEXIMARK® ULTRA marking
labels for clear and secure connector identification |
|
|||
|
|||||||||||
 |
||
 |
||
