EPIC® Rectangular Connectors

Single vs. Double Bolt Hoods

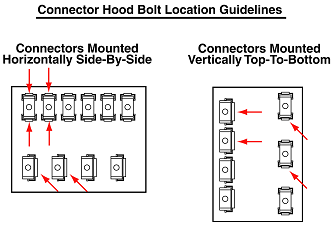

Although either bolt location can be used, the key is to use a bolt location that allows the connectors to be mounted as close together as possible while providing the maximum access possible to the locking levers on the base.

For connectors mounted horizontally side-by-side, the double bolt location is preferred.

For connectors mounted vertically top-to-bottom, the single bolt location is preferred.
