EPIC® Rectangular Connectors

STA 14 Inserts
Solder Terminated Plugs and Receptacles

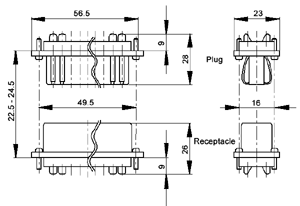

View from Cable Side


Panel Cut-out
(Insert Only)



All dimensions are in mm.

STA: 1.0 mm2 (18 AWG)


  Rated Voltage: UL: 48V VDE: 60V CSA: 48V
  Rated Current: UL: 10A VDE: 10A CSA: 10A
  Temperature Range: -40°C to 80°C
  Pollution Level: 2
  Dimensioning Transient: 1.0 kV
  Termination: up to 1.5 mm2
  Contact Material: Copper Alloy, silver plated
  Contact Resistance: <2 mOhm
  Mating Cycles: 100 (higher mating cycles depending on the application)


Plug
Receptacle
Solder terminated
10492200
10490200
