EPIC® Pin & Sleeve Connectors |
|
|
 |
| EPIC®
Pin & Sleeve Connectors' are designed to meet the power connectivity
needs and requirements of your business. Whether you are designing machinery
for that important international customer or specifying mobile power solutions
on the factory floor EPIC® Pin & Sleeve Connectors' and interlocked
switched sockets are the devices to order to meet your light industrial
wiring requirements.
North American devices are available in 20, 30, 60 and 100 Amps and international devices are available in 16, 32, 63 and 125 Amps. Both North American and International devices are available in splashproof (IP44) and watertight (IP 67) configurations. EPIC® Pin & Sleeve Connectors' conform to IEC 60309 however advanced industrial design has lead to a range of superior products that put the products that we offer at the forefront of technology. For example, the MULTIMAX pin and sleeve connectors have a unique design that can be assembled in under 20 seconds thus saving money through reduced downtime and installation savings: they are also a sensible, safe alternative to certain twist lock applications. |
 |
|
 |
|
|
NORTH
AMERICAN STANDARDS- UL
|
|||||||
|
Voltage
|
#
of Wires
|
#
of Poles
|
Ground-Position
|
20A
|
30A
|
60A
|
100A
|
|
125
|
3
|
1+N+PE
|
4
|
X
|
X
|
X
|
-
|
|
250
|
3
|
2+PE
|
6
|
X
|
X
|
X
|
-
|
|
480
|
3
|
2+PE
|
7
|
X
|
X
|
-
|
-
|
|
250
DC
|
3
|
2+PE
|
3
|
X
|
X
|
X
|
X
|
|
125/250
|
4
|
2+N+PE
|
12
|
X
|
X
|
X
|
X
|
|
3Ø
250
|
4
|
3+PE
|
9
|
X
|
X
|
X
|
X
|
|
3Ø
480
|
4
|
3+PE
|
7
|
X
|
X
|
X
|
X
|
|
3Ø
600
|
4
|
3+PE
|
5
|
X
|
X
|
-
|
-
|
|
3ØY
120/208
|
5
|
3+N+PE
|
9
|
X
|
X
|
X
|
X
|
|
3ØY
277/480
|
5
|
3+N+PE
|
7
|
X
|
X
|
-
|
-
|
|
3ØY
347/600
|
5
|
3+N+PE
|
5
|
X
|
X
|
-
|
-
|
|
50
- 250 (400 Mhz)
|
5
|
3+N+PE
|
2
|
X
|
X
|
-
|
-
|
|
INTERNATIONAL
STANDARDS- UL
|
|||||||
|
Voltage
|
#
of Wires
|
#
of Poles
|
Ground-Position
|
16A
|
32A
|
63A
|
125A
|
|
110 - 130 |
3
|
2+PE
|
4
|
X
|
X
|
X
|
-
|
|
4
|
3+PE
|
4
|
X
|
X
|
X
|
X
|
|
|
5
|
3+N+PE
|
4
|
X
|
X
|
X
|
X
|
|
|
200
- 250
|
3
|
2+PE
|
6
|
X
|
X
|
X
|
-
|
|
4
|
3+PE
|
9
|
X
|
X
|
X
|
X
|
|
|
5
|
3+N+PE
|
9
|
X
|
X
|
X
|
X
|
|
|
380
-415
|
3
|
2+PE
|
9
|
X
|
X
|
X
|
-
|
|
4
|
3+PE
|
6
|
X
|
X
|
X
|
X
|
|
|
5
|
3+N+PE
|
6
|
X
|
X
|
X
|
X
|
|
|
480
-500
|
3
|
2+PE
|
7
|
X
|
X
|
-
|
-
|
|
4
|
3+PE
|
7
|
X
|
X
|
X
|
X
|
|
|
5
|
3+N+PE
|
7
|
X
|
X
|
X
|
X
|
|
|
600
-690
|
4
|
3+PE
|
5
|
X
|
X
|
-
|
-
|
|
5
|
3+N+PE
|
5
|
X
|
X
|
-
|
-
|
|
|
50
- 500
(iso. transformer) |
3
|
2+PE
|
12
|
X
|
X
|
X
|
-
|
|
4
|
3+PE
|
12
|
X
|
X
|
X
|
X
|
|
|
50
- 500V
(100 - 300Hz) |
3
|
2+PE
|
10
|
X
|
X
|
-
|
-
|
|
4
|
3+PE
|
10
|
X
|
X
|
-
|
-
|
|
|
5
|
3+N+PE
|
10
|
X
|
X
|
-
|
-
|
|
|
50
- 500V
(100 - 500Hz) |
3
|
2+PE
|
2
|
X
|
X
|
-
|
-
|
|
4
|
3+PE
|
2
|
X
|
X
|
-
|
-
|
|
|
5
|
3+N+PE
|
2
|
X
|
X
|
-
|
-
|
|
|
440
- 460
|
4
|
3+PE
|
11
|
X
|
X
|
X
|
X
|
|
5
|
3+N+PE
|
11
|
X
|
X
|
X
|
X
|
|
|
250
- 250DC
|
3
|
2+PE
|
3
|
X
|
X
|
-
|
-
|
|
250
- 500DC
|
3
|
2+PE
|
8
|
X
|
X
|
-
|
-
|
|
|
|||
|
4

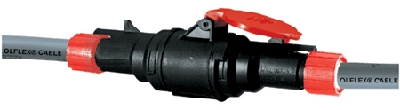

STEPS TO CONNECT MULTIMAX
|
|||
|
1. Insert the cable into the grip. |
2. Tighten the terminal screws which are unscrewed in advance and positioned on the same side |
3. Close the grip until it clicks. (1/4 turn) |
4.
Lock the Cable by turning the shade ring until
it is locked in position.
|
 |
 |
 |
 |
|
|
|
|
3

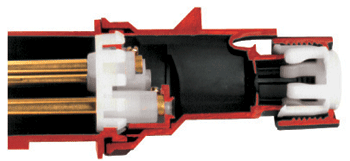

PATENTS & REASONS FOR CHOOSING MULTIMAX
|
|
 |
1. Snaplock function provides speed in assembling. The grip is assembled without any tools, with a 1/4 turn. 2.Guarantee of cable clamping over time. The cord grip with the shade ring locking device presents the accidental loosening of the cable. 3. Safety of protection rating even with the cable stressed. The radical clamping cord grip without screws protects the cable. |
|
|
 |
|
|
