EPIC® Pin & Sleeve Connectors

North American Versions: Ground Pin Location & Voltage

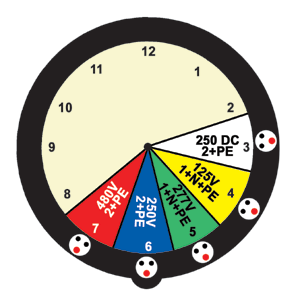

3 Wires: 2+PE & 1+N+PE

Ground Pin location is specified for the female connector referenced to the hour positions on the face of a clock.



Key way is always at the
6 o’clock position



Color slices represent voltages
which are also on the connectors.

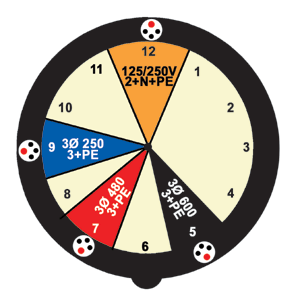

4 Wires: 2+N+PE & 3+PE

Ground Pin location is specified for the female connector referenced to the hour positions on the face of a clock.



Key way is always at the
6 o’clock position



Color slices represent voltages
which are also on the connectors.

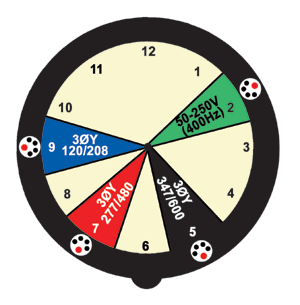

5 Wires: 3+N+PE

Ground Pin location is specified for the female connector referenced to the hour positions on the face of a clock.



Key way is always at the
6 o’clock position



Color slices represent voltages
which are also on the connectors.
