EPIC® Pin & Sleeve Connectors

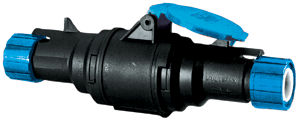

MULTIMAX Connectors can be assembled in 20 seconds


1. SNAPLOCK FUNCTION PROVIDES SPEED IN ASSEMBLING
The grip is assembled without any tools, with a 1/16 turn.

2. GUARANTEE OF CABLE CLAMPING OVER TIME.
The cord grip with the shade ring locking device prevents accidental loosening of the cable.

3. SAFETY OF PROTECTION RATING EVEN WITH THE CABLE STRESSED.

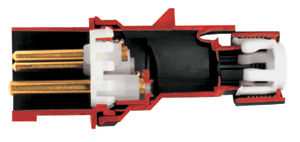

The radial clamping cord grip is located external to the universal membrane seal. The un-stressed seal maintains its environmental rating throughout the connector’s service life.
4 Easy Steps to Assemble
HIGH QUALITY

Made with first-rate thermoplastic, these products are composed of an insulating enclosure with a quality finish. The reinforced walls make the products extremely robust and impact resistant. The UV stabilized technopolymers ensure resistance against exposure to direct sunlight.

1. Insert the prepared cable into the grip. 2. Tighten the terminal screws which are unscrewed in advance and positioned on the same side.
3. Close the grip until it clicks. (1/16 turn) 4. Lock the cable by turning the shade ring until it is locked in position.
