EPIC® Pin & Sleeve Connectors |
International Versions: Ground Pin Location & Voltage |

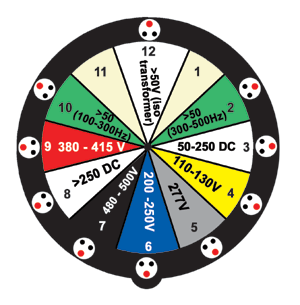

3
Wires: 2+PE |
|
 |
Ground Pin location is specified for the female connector referenced to the hour positions on the face of a clock.
Key
way is always at the
Color
slices represent voltages |
 |
|

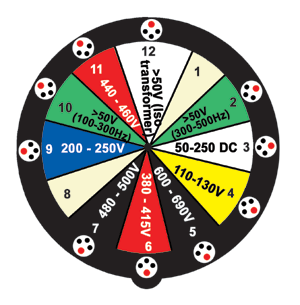

4
Wires: 3+PE |
|
Ground Pin location is specified for the female connector referenced to the hour positions on the face of a clock.
Key
way is always at the
Color
slices represent voltages |
 |
|
|

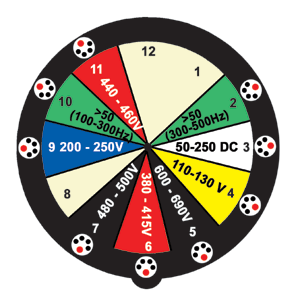

5
Wires: 3+N+PE |
|
 |
Ground Pin location is specified for the female connector referenced to the hour positions on the face of a clock.
Key
way is always at the
Color
slices represent voltages |
|
||||||
|
||||||
