EPIC® Pin & Sleeve Connectors |
|
30 Amp: North American Version |
IP 44   |
 |
 |
 |
||
| Impact Resistance: | 8J | |
| Ambient Temperature: | -25°C to 70°C | |
| Flame Resistance: | ||
Glow Wire Test: Enclosure: |
850°C | |
|
Glow Wire Test: Contact Enclosure: |
850°C | |
|
Self-Extinguishing: Enclosure: |
UL94-V2 | |
|
Self-Extinguishing: Contact Carrier: |
UL94-V2 | |
 |
||
 |
||
|
Part
Number |
Voltage |
#
of Wires |
#
of Poles |
Ground-Clock
Position |
|
700224FX |
125 |
3 |
1+N+PE |
4 |
|
700226FX |
250 |
3 |
2+PE |
6 |
|
700227FX |
480 |
3 |
2+PE |
7 |
 |
||||
|
701232FX |
125/250 |
4 |
2+N+PE |
12 |
|
700239FX |
3ø250 |
4 |
3+PE |
9 |
|
700237FX |
3ø480 |
4 |
3+PE |
7 |
|
700235FX |
3ø600 |
4 |
3+PE |
5 |
|
||||
|
700249FX |
3øY
120/208 |
5 |
3+N+PE |
9 |
|
700247FX |
3øY
277/480 |
5 |
3+N+PE |
7 |
|
700245FX |
3øY
347/600 |
5 |
3+N+PE |
5 |
|
||||
|
||||
 |
||
|

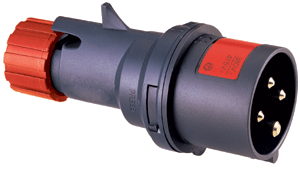

MULTIMAX Female Connector
with Cable Sleeve, IP 44
|
||
|
CEE Straight Female Panel Mount
Receptacle, IP 44 |
||
|
CEE 75° Female Internal
Surface Mount Receptacle, IP 44 |
||
  |
