EPIC® Pin & Sleeve Connectors

20 Amp: North American Version

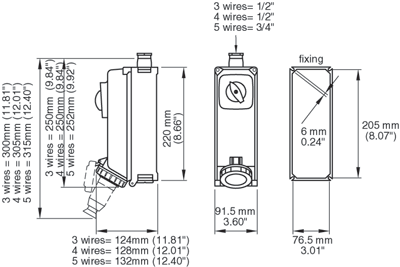

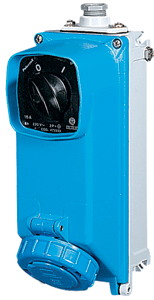

ALUPRES Aluminum Enclosures Direct Connect
IP 65

  Impact Resistance: 8J
  Ambient Temperature: -25°C to 70°C
  Flame Resistance:
  Glow Wire Test: Enclosure: 850°C
  Glow Wire Test: Contact Enclosure: 850°C
  Self-Extinguishing: Enclosure: UL94-V2
  Self-Extinguishing: Contact Carrier: UL94-V2
Part Number
Voltage
# of Wires
# of Poles
Ground-Clock Position
460124FX
125
3
1+N+PE
4
460126FX

250
3
2+PE
6
461132FX
125/250
4
2+N+PE
12
460139FX
3ø250
4
3+PE
9
460137FX
3ø480
4
3+PE
7
460149FX
3øY 120/208
5
3+N+PE
9
460147FX
3øY 277/480
5
3+N+PE
7

  CEE Straight Male Plug with Cable Gland, IP 67
  CEE 90° Male Plug with Cable Gland, IP 67
