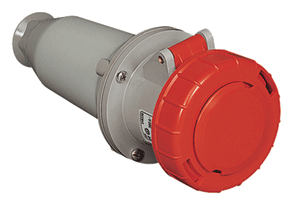

EPIC® Pin & Sleeve Connectors |
125 Amp: International Version |
IP 67  |
 |
 |
Technical Data |
||
| Impact Resistance: | 8J | |
| Ambient Temperature: | -25°C to 70°C | |
| Flame Resistance: | ||
 Glow Wire Test: Enclosure: |
850°C | |
| Glow Wire Test: Contact Enclosure: |
850°C | |
| Self-Extinguishing: Enclosure: |
UL94-V2 | |
| Self-Extinguishing: Contact Carrier: |
UL94-V2 | |
 |
||
Part Numbers |
||
Part
Number |
Voltage |
#
of Wires |
#
of Poles |
Ground-Clock
Position |
473218 |
110
- 130 |
4 |
3+PE |
4 |
473228 |
5 |
3+N+PE |
4 |
|
 |
||||
473318 |
200
- 250 |
4 |
3+PE |
9 |
473328 |
5 |
3+N+PE |
9 |
|
|
||||
349538 |
380
- 415 |
4 |
3+PE |
6 |
359538 |
5 |
3+N+PE |
6 |
|
|
||||
349550 |
480
- 500 |
4 |
3+PE |
7 |
|
||||
473468 |
440
- 460 |
4 |
3+PE |
11 |
473538 |
5 |
3+N+PE |
11 |
|
|
||||
| Mating Components: | ||
| CEE Straight
Male Plug with Cable Gland, IP 67 |
||
| CEE
Straight Male Inlet, IP 67 |
||
|
  |
|
||||||
|
||||||
