EPIC® Rectangular Connectors

Mixed Power Inserts

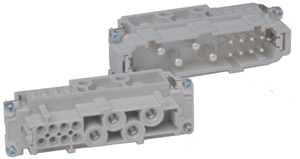

4 Power/ 8 Signal Screw Terminated Plugs and Receptacles

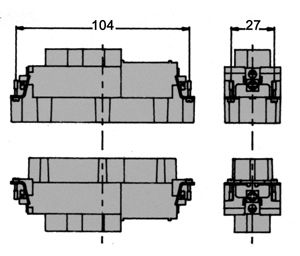

All dimensions in mm

  Rated Voltage: UL/CSA: 600V
  Rated Current: UL/CSA: 80A
  Temperature Range: -40°C to 125°C
  Pollution Level: 3
  Termination: up to 16 mm2 (power contacts) AWG 6
    up to 2.5 mm2 (signal contacts) AWG 14
  Contact Material: Copper Alloy, silver plated
  Contact Resistance: <0.3 mOhm


Plug
Receptacle
Screw Termination
11.2408
11.1408
HBE 24 Housings
