EPIC® Rectangular Connectors |

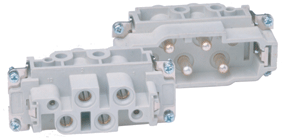

Mixed Power Inserts |
   |
|
|
Derating Curve |
 |
Technical Data |
|||||
| Rated Voltage: | 600V | ||||
| Rated Current: | 80A | ||||
| Temperature Range: | -40°C to 125°C | ||||
| Pollution Level: | 3 | ||||
| Termination: | up to 16 mm2 (power contacts) | AWG 6 | |||
| up to 25 mm2 (power contacts) | AWG 14 | ||||
| Contact Material: | Copper Alloy, silver plated | ||||
| Contact Resistance: | <0.3 mOhm | ||||
Part Numbers |
||
Plug |
Receptacle |
|
Screw Termination |
MP/M400 |
MP/F400 |
Mating Components: |
|
|
|
|
||||||
