EPIC® Rectangular Connectors

Modular Inserts
Pneumatic Modules

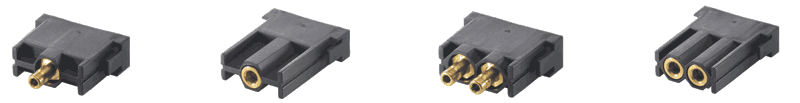

These modules are used for easy and fast connection of compressed air hoses. Applications include machine building, mini pneumatics, measurement and control technology.

Bus Connectors

Note: Color of components may be
different than shown.
  Temperature: -20ºC to 100ºC

FEATURES
•
 Available with 1 or 2 Connector Pins
•
 Screw Terminated
•
 For compressed air hoses with inner diameter of 2.5 mm or 4 mm. Outer diameter max. 8.0 mm
•
 Female version has built in blocking value
•
 Air pressure: Max. 10 bar (145 psi)

Part Numbers
Description
Contacts
Hose Diameter
44424004
Male
1
2.5 mm
44424005
Female with built in valve
1
2.5 mm
44424006
Male
1
4.0 mm
44424007
Female with built in valve
1
4.0 mm
44424008
Male
2
2.5 mm
44424009
Female with built in valve
2
2.5 mm
44424010
Male
2
4.0 mm
44424011
Female with built in valve
2
4.0 mm
