EPIC® Rectangular Connectors


Modular Inserts
Universal Bus Modules

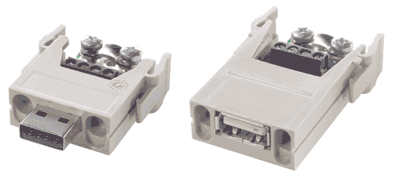

Bus Connectors

Note: Color of components may be different than shown.

Technical Data
  Rated Voltage: 30V
  Rated Current: 1A
  Termination: Screw Terminated
  Transfer Rate: max. 1.5 MB/s for bus feed through
Part Numbers

Plug
Receptacle

4 + Shield

10390600
10390700

Mating Components:

Modular Frames
