Note:
Color of components may be |
 |
|
|
 |
|
|

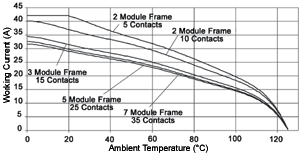

Module Machine Contacts: 4 mm2 (12 AWG)
|

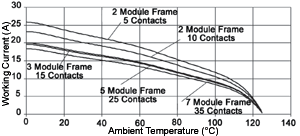

Module Machine Contacts: 2.5 mm2 (14 AWG)
|
 |
 |
|
|
|
 |
|||||
| Rated Voltage: | 400V | ||||
| Rated Current: | 20A | ||||
| Temperature Range: | -40°C to 125°C | ||||
| Pollution Level: | 3 | ||||
| Termination: | 0.5 - 4.0 mm2 | AWG 20 - 12 | |||
| Contact Material: | copper alloy: silver/gold plated | ||||
| Mating Cycles: | 100 (higher mating cycles depending on the application) | ||||
|
|
|||||
|
Plug
|
Receptacle
|
|

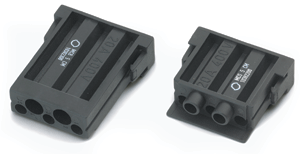

| 5 Contact Module |
10382200
|
10382300
|
|
|
||
 |
 |
 |
|
Bags
of 100
|
|||||
|
SILVER
|
Stripping Length (mm) |
# of Marking Tracks |
|||
|
mm2
|
AWG
|
Pin
|
Socket
|
||
|
0.5
|
20
|
1121300C
|
1121800C
|
7.8 |
- |
|
0.75
- 1.0
|
18
|
1121310C
|
1121810C
|
7.8 |
1 |
|
1.5
|
16
|
1121320C
|
1121820C
|
7.8 |
2 |
|
2.5
|
14
|
1121330C
|
1121830C
|
7.8 |
3 |
|
4.0
|
12
|
1121340C
|
1121840C
|
7.8 |
- |
|
|
|||||
 |
 |
 |
 |
|
|
Locator
|
Crimp
Dies
|
Crimp
Tool
|
Removal
Tool
|
|
|
11147200
|
11147100
|
11147000
|
11171000
|
|
|
|
||||
 |
Modular
Frames |
|
|
  |
|
|
