EPIC® Rectangular Connectors

Modular Inserts

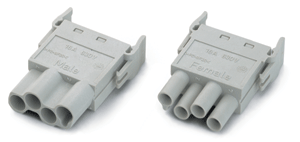

4 Contact Module

Note: Color of components may be different than shown.

Contacts sold separately

Technical Data
	Rated Voltage:	630V
	Rated Current:	25A
	Temperature Range:	-40°C to 125°C
	Pollution Level:	3
	Termination:	0.5 - 4 mm2		AWG 20 -12
	Contact Material:	Copper Alloy, silver plated
	Mating Cycles:	100 (higher mating cycles depending on the application)

Part Numbers
	Plug	Receptacle
3 Contact High Voltage Module	10399000	10399100
Contacts MC Machined Contacts: Diameter 2.5 mm

Bags of 100
		SILVER		GOLD		Stripping Length (mm)	# of Marking Tracks
mm2	AWG	Pin	Socket	Pin	Socket	Stripping Length (mm)	# of Marking Tracks
0.5	20	11190000	11195000	11192000	11197000	Pin= 7.4, Socket= 7.3	-
.75 - 1.0	18	11190100	11195100	11192100	11197100	Pin= 7.4, Socket= 7.3	1
1.5	16	11190200	11195200	11192200	11197200	Pin= 7.4, Socket= 7.3	2
2.5	14	11190300	11195300	-		Pin= 7.4, Socket= 7.3	3
4.0	12	11190400	11195400	-		Pin= 7.4, Socket= 7.3	-
Tools


Locator	Crimp Dies	Crimp Tool	Removal Tool
11147200	11147100	11147000	11182500

Mating Components:
