EPIC® Rectangular Connectors


Modular Inserts

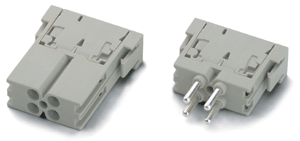

4 Contact Cage Clamp Module



Note: Color of components may be different than shown

.

Derating Curve
4 Module Cage Clamp: 0.5 mm2 (20 AWG)
Technical Data
  Rated Voltage: 400V
  Rated Current: 14A
  Temperature Range: -40°C to 125°C
  Pollution Level: 3
  Termination: Single Wire: 4.0 mm2 AWG 12
    Fine Wire: 2.5 mm2 AWG 10
  Contact Material: Copper Alloy, silver plated
  Mating Cycles: 100 (higher mating cycles depending on the application)
Part Numbers

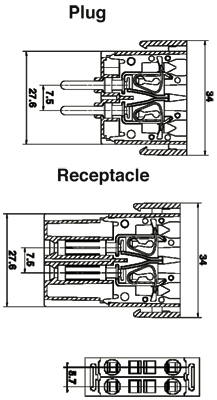

Plug
Receptacle

4 Contact Cage Clamp Module

10399600
10399700

Mating Components:

Modular Frames
