NAVIGATE THE CATALOG BY SECTIONS

EPIC® Rectangular Connectors

Modular Inserts

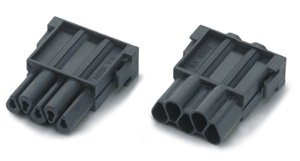

4+PE High Voltage Contact Module

Note: Color of components may be different than shown.

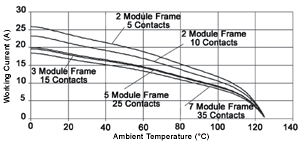

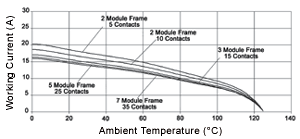

Derating Curves
4+PE Module Machine Contacts: 1.5 mm2 (16 AWG)	4+PE Module Machine Contacts: 2.5 mm2 (14 AWG)

Technical Data
	Rated Voltage:	1000V
	Rated Current:	16A
	Temperature Range:	-40°C to 125°C
	Pollution Level:	3
	Termination:	1.5 - 2.5 mm2		AWG 20 - 14
	Contact Material:	Copper Alloy, silver plated
	Mating Cycles:	100 (higher mating cycles depending on the application)

Part Numbers
	Plug	Receptacle
3 Contact High Voltage Module	10383200	10383300
Contacts MC Stamped & Formed: Diameter 2.5 mm

		Bags of 100		Reel of 100		Reel of 200
		SILVER						Stripping Length (mm)
mm2	*AWG*	Pin	Socket	Pin	Socket	Pin	Socket	Stripping Length (mm)
0.5 - 1.5	16 - 20	11201000	11205000	-	-	11208000	11209000	3.5 - 0.5
1.5 - 2.5	16 - 14	11202000	11206000	11208500	11209500	-	-	3.5 - 0.5
Part number= 1 contact (bags) or 1 reel.
Tools


Locator		Crimp Dies		Crimp Tool	Removal Tool
0.5 - 1.5:	11147300	0.5 - 1.5:	11147180	11147000	11160000
1.5 - 2.5:	11147310	1.5 - 2.5:	11147190

	Crimp Tool for Reel 11153500			Crimp Dies for Reel
					0.5 - 1.5:	11153700
					1.5 - 2.5:	11153800

Mating Components:
