EPIC® Rectangular Connectors

Modular Inserts

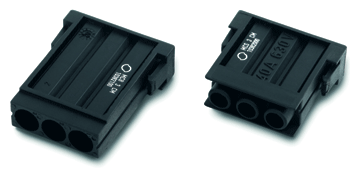

3 Contact Module for Machine Contacts




Note: Color of components may be
different than shown.

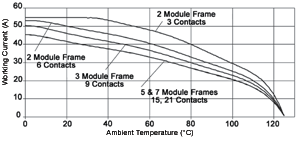

3 Module Machine Contacts: 6mm2 (10 AWG)

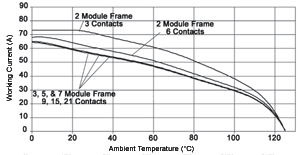

3 Module Machine Contacts: 10mm2 (8 AWG)
  Rated Voltage: 630V
  Rated Current: 40A
  Temperature Range: -40°C to 125°C
  Pollution Level: 3
  Termination: 1.5 - 10 mm2 AWG 16-8
  Contact Material: copper alloy: silver plated
  Mating Cycles: 100 (higher mating cycles depending on the application)

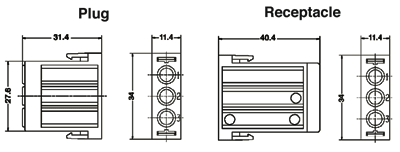

Plug
Receptacle
3 Contact Module
10382000
10382100

MC Machined Contacts: Diameter 3.6mm
Bags of 100

SILVER
Stripping Length (mm)
mm2
AWG
Pin
Socket
1.5
16
1121070C
1121570C
10
2.5
14
1121060C
1121560C
10
4.0
12
1121000C
1121500C
10
6.0
10
1121010C
1121510C
10
10
8
1121020C
1121520C
10

Locator
Crimp Dies
Crimp Tool
Removal Tool
11147210
1.5 - 2.5: 11147110
4.0 - 10: 11147120
11147000
11171100
Modular Frames
