EPIC® Rectangular Connectors


Modular Inserts
3 Contact High Voltage Modules



Note: Color of components may be
different than shown.

Derating Curves

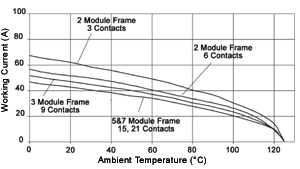

3 Module Machine Contacts: 6mm2 (10 AWG)

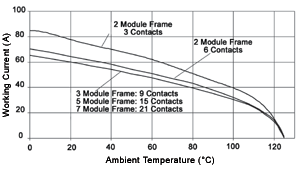

3 Module Machine Contacts: 10mm2 (8 AWG)
Technical Data
  Rated Voltage: 1000V
  Rated Current: 50A
  Temperature Range: -40°C to 125°C
  Pollution Level: 3
  Termination: 1.5 - 10 mm2 AWG 16 -8
  Contact Material: Copper Alloy, silver plated
  Mating Cycles: 100 (higher mating cycles depending on the application)
Part Numbers

Plug
Receptacle

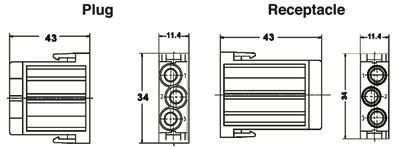

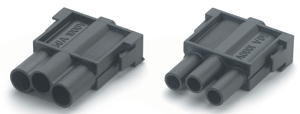

3 Contact High Voltage Module

10399800
10399900
Contacts
MC Machined Contacts: Diameter 3.6mm
Bags of 100

SILVER
Stripping Length (mm)
mm2
AWG
Pin
Socket
1.5
16
1121070C
1121570C
10
2.5
14
1121060C
1121560C
10
4.0
12
1121000C
1121500C
10
6.0
10
1121010C
1121510C
10
10
8
1121020C
1121520C
10
Tools
Locator
Crimp Dies
Crimp Tool
Removal Tool
11147210
1.5 - 2.5: 11147110
4.0 - 10: 11147120
11147000
11171100
