EPIC® Rectangular Connectors |
Modular Inserts |
   |
Note: Color of components may be different than shown. |
 |
 |
|
Technical Data |
|||||
| Rated Voltage: | 250V | ||||
| Temperature Range: | -40°C to 125°C | ||||
| Pollution Level: | 3 | ||||
| Termination: | RG 58 | ||||
| Contact Material: | Copper Alloy, silver plated | ||||
| Mating Cycles: | 100 (higher mating cycles depending on the application) | ||||
Part Numbers |
||

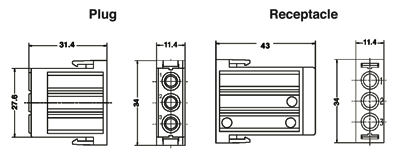

Plug |
Receptacle |
|
3 Contact Coax Module |
10399200 |
10399300 |
Contacts MC Coax Contacts: Wire Gauge RG 58 |
||
 |
 |
Pin |
Socket |
|
Coax Contacts |
11214200 |
11219200 |
Tools |
||
 |
 |
 |
|
Crimp
Dies |
Crimp
Tool |
Removal
Tool |
|
11147130 |
11147000 |
11171100 |
|
 |
Mating Components: |
|
|
|
|
||||||
