EPIC® Rectangular Connectors

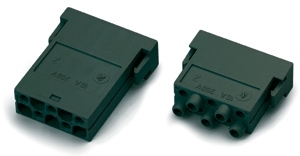

Modular Inserts 10 Contact Module for Stamped & Formed Contacts

Note: Color of components may be different than shown.

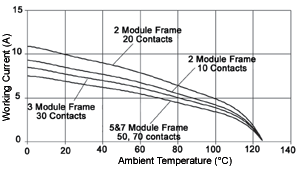

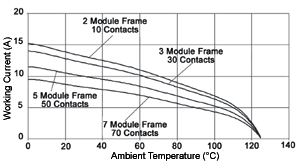

10 Module Stamped & Formed Contacts: 0.5 mm2 (20 AWG)	10 Module Stamped & Formed Contacts: 1.5 mm2 (16 AWG)


	Rated Voltage:	250V
	Rated Current:	10A
	Temperature Range:	-40°C to 125°C
	Pollution Level:	3
	Termination:	0.14 - 2.5mm2		AWG 26 - 14
	Contact Material:	copper alloy: silver/gold plated
	Mating Cycles:	100 (higher mating cycles depending on the application)

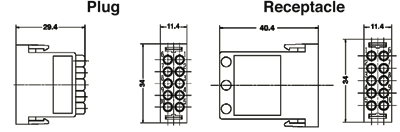

	Plug	Receptacle
10 Contact Module	10383400	10383500

Stamped & Formed Contacts: Diameter 1.6 mm

				Stripping Length (mm)
				0.14 - 0.5	2.5 - 0.5
				0.5 - 1.5	3.5 - 0.5
				1.5 - 2.5	3.5 - 0.5

		Bags of 100				Silver: Left Hand Feed Reel
		SILVER		GOLD		Reel of 100		Reel of 200
mm2	AWG	Pin	Socket	Pin	Socket	Pin	Socket	Pin	Socket
0.14 - 0.5	26 - 22	11241100	11231100	11243100	11233100	-	-	11240700	11230700
0.5 - 1.5	20 - 16	11221000	11236100	11221300	11238100	-	-	11220700	11235700
1.5 - 2.5	16 - 14	11223500	11228500	-	-	11223000	11228000	-	-

		Reel of 2000: Right Hand Feed				Reel of 2000: Left Hand Feed
		SILVER		GOLD		SILVER		GOLD
mm2	AWG	Pin	Socket	Pin	Socket	Pin	Socket	Pin	Socket
0.14 - 0.5	26 - 22	11240000	11230000	-	-	11240400	11230400	11230500	11240500
0.5 - 1.5	20 - 16	11220000	11235000	11220100	11235200	11226000	11226500	-	-
1.5 - 2.5	16 - 14	-	-	-	-	11222700	11227700	-	-
Part number= 1 contact (bags) or 1 reel


Locator	Crimp Dies			Crimp Tool	Removal Tool
11147300		0.14 - 0.5:	11147170	11147000	11161000
		0.5 - 1.5:	11147180
		1.5 - 2.5:	11147190

	Crimp Tool for Reel 11153500			Crimp Dies for Reel
					0.14 - 0.5:	11153600
					0.5 - 1.5:	11153700
					1.5 - 2.5:	11153800

Modular Frames
