EPIC® Rectangular Connectors

Modular Inserts
10 Contact Module for Machine Contacts

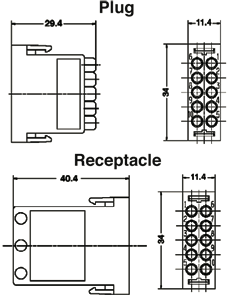

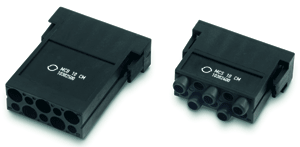

Note: Color of components may be different than shown.

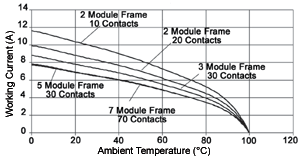

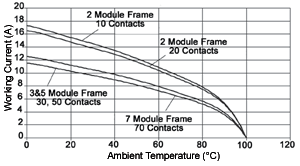

Derating Curves
10 Module Machine Contacts: 0.5 mm2 (14 AWG)	10 Module Machine Contacts: 1.5 mm2 (16 AWG)

Technical Data
	Rated Voltage:	250V
	Rated Current:	10A
	Temperature Range:	-40°C to 125°C
	Pollution Level:	3
	Termination:	0.14 - 2.5 mm2		AWG 26 - 14
	Contact Material:	Copper Alloy, silver plated
	Mating Cycles:	100 (higher mating cycles depending on the application)

Part Numbers
	Plug	Receptacle
10 Contact Module	10382400	10382500

Contacts Machined Contacts: Diameter 1.6 mm

Bags of 100
		SILVER		GOLD		Stripping Length (mm)	Cross Section Characteristic
mm2	AWG	Pin	Socket	Pin	Socket	Stripping Length (mm)	Cross Section Characteristic
0.14 - 0.37	26-22	13162000	13163000	13162500	13163500	8	1
0.5	20	13162100	13163100	13162600	13163600	8	2
0.75 - 1.0	18	13162200	13163200	13162700	13163700	8	3
1.5	16	13162300	13163300	13162800	13163800	8	4
2.5	14	13162400	13163400	13162900	13163900	5.8	5

Tools

Locator	Crimp Dies	Crimp Tool	Removal Tool
11147200	11147100	11147000	11161000

Mating Components:
