NAVIGATE THE CATALOG BY SECTIONS

EPIC® Rectangular Connectors

Modular Inserts
2 Contact Modules

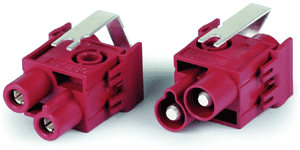

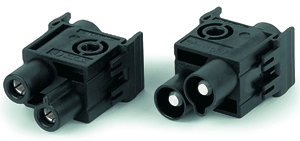

2 Working Contacts	1 Working Contact & 1 Ground


Note: Color of components may be different than shown.

Derating Curve

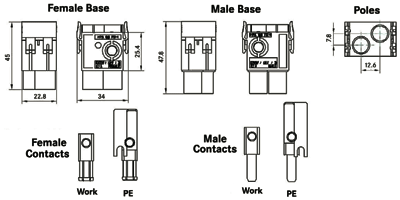

2 Contact Module: 4 - 25 mm2 (12 - 4 AWG)

Technical Data
	Rated Voltage:	1000V
	Rated Current:	82A
	Temperature Range:	-40°C to 125°C
	Contact Resistance:	1.5 - 4 mOhms
	Termination:	4 - 25 mm2	AWG 20 - 14
	Contact Material:	Silver plated
	Mating Cycles:	100 (higher mating cycles depending on the application)

Part Numbers
	Plug	Receptacle
2 Working Contacts Module	10344100	10345100
1 Working Contact & 1 Ground Module	10344600	10345600

FEATURES:
• The new module can be inserted into the standard EPIC® Modular Frames.
• The modules can be inserted or removed from the frame without a tool because of the snap hooks.
• These screw contact modules can be easily wired with a standard screwdriver.
• The flexibility of the modular series allows the arrangement of modules to fit requirements.
• This module takes up 2 slots in the modular frame.
• The high current modules require the usage of high profile HBE 16 and HBE 24 housings.

Mating Components:

Modular Frames
