EPIC® Circular Connectors |
|
LS1 Power & Mixed Power Connectors |
    |
 |
 |
 |
Crimp Tool 0.14 - 6.0 mm2 11148000 |
Locator 11148300 |
Removal Tool 1mm Contacts: 75017400 2mm Contacts: 75017500 |
 |
 |
|||

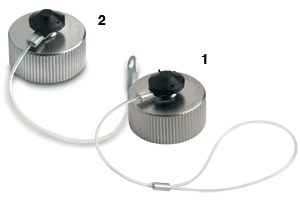

Metal Screw Cap |
Plastic Protection Cap |
|||
Style |
Part # |
For Housing |
Part # |
Description |
1 |
75018210 |
Style A1, A3, A6, F7 |
75007710 | Style D6 |
2 |
75018310 |
Style D6, F6, F7, G5 |
75007810 | Style A1, A6, A7, F6, F7, G5 |
 |
 |
 |
Yellow Marking Ring 75013410 |
Red Marking Ring 75013110 |
Blue Marking Ring 75013210 |
 |
 |
Green Marking Ring 75013310 |
Transparent Marking Ring 75013010 |
Spare Contacts:
Male Contacts for Style A1 Connectors |
||
Part # |
Description |
Pack Size |
74033001 |
0.14 - 1.00 mm2 |
10 |
74033000 |
0.14 - 1.00 mm2 |
100 |
74033101 |
0.50 - 2.50 mm2 |
10 |
74033100 |
0.50 - 2.50 mm2 |
100 |
Female Contacts for Style D6 Connectors |
||
Part # |
Description |
Pack Size |
74033501 |
0.14 - 1.00 mm2 -Slot |
10 |
74033500 |
0.14 - 1.00 mm2- Slot |
100 |
74034501 |
0.14 - 1.00 mm2- Hyper Boloid |
10 |
74034500 |
0.14 - 1.00 mm2- Hyper Boloid |
100 |
74034601 |
0.50 - 2.50 mm2- Hyper Boloid |
10 |
74034600 |
0.50 - 2.50 mm2- Hyper Boloid |
100 |
Male Contacts for Style F6 & F7 Connectors |
||
Part # |
Description |
Pack Size |
74034001 |
0.14 - 1.00 mm2 |
10 |
74034000 |
0.14 - 1.00 mm2 |
100 |
74034101 |
0.50 - 2.50 mm2 |
10 |
74034100 |
0.50 - 2.50 mm2 |
100 |
 LS1 Overview & Technical Data |
| 5+PE Connectors |
| 3+PE+4 Connectors |
| Application with OLFLEX® Servo Cables |
  |
