NAVIGATE THE CATALOG BY SECTIONS

EPIC® Rectangular Connectors

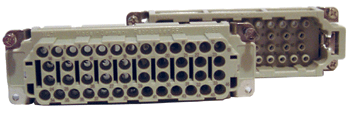

HEE 92 Inserts
Crimp Terminated Plugs & Receptacles

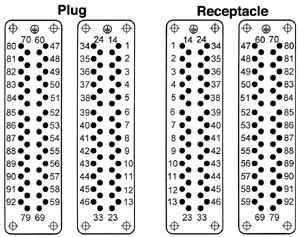

Please note that contacts are sold separately.	View from Cable Side

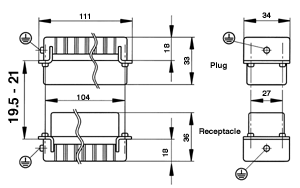

All dimensions are in mm.

Derating Curves
HEE Crimp Terminated: 1.5 mm2 (16 AWG)	HEE Crimp Terminated: 2.5 mm2 (14 AWG)

Technical Data
	Rated Voltage:	UL: 600V	VDE: 500V	CSA: 600V
	Rated Current:	UL: 16A
	Temperature Range:	-40°C to 125°C
	Pollution Level:	3
	Dimensioning Transient:	6 kV
	Termination:	0.5 - 4.0 mm2		AWG 20 - 12
	Contact Material:	Copper Alloy, silver plated
	Contact Resistance:	<2 mOhm
	Mating Cycles:	100 (higher mating cycles depending on the application)

Part Numbers
	Plug	Receptacle
Crimp Terminated: Machined # 1 - 46	10186400	10187400
Crimp Terminated: Machined # 47 - 92	10186500	10187500

Contacts
Machined Contacts: Diameter 2.5 mm

Bags of 100
		SILVER		GOLD		Stripping Length (mm)	# of Marking Tracks
mm2	AWG	Pin	Socket	Pin	Socket	Stripping Length (mm)	# of Marking Tracks
0.5	20	11190000	11195000	11192000	11197000	Pin= 7.4, Socket= 7.3	-
.75 - 1.0	18	11190100	11195100	11192100	11197100	Pin= 7.4, Socket= 7.3	1
1.5	16	11190200	11195200	11192200	11197200	Pin= 7.4, Socket= 7.3	2
2.5	14	11190300	11195300	-		Pin= 7.4, Socket= 7.3	3
4.0	12	11190400	11195400	-		Pin= 7.4, Socket= 7.3	-
Tools

			For removal of contacts use a slotted screwdriver. No special tool is necessary.
Locator	Crimp Dies	Crimp Tool
11147200	11147100	11147000

Mating Components:

HBE 48 Housings
