EPIC® Rectangular Connectors |
|
HBS 6 Inserts |
   |
|
|

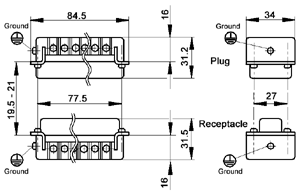

View
from Cable Side Panel
Cut-Out |
|
|
|
 |
|
|
HBVE:
1.5 mm2 (16 AWG)
|
HBVE:
2.5 mm2 (14 AWG)
|
 |
 |
|
|
|
 |
|||||
| Rated Voltage: | UL: 600V | VDE: 630V | CSA: 600V | ||
| Rated Current: | UL: 16A | VDE: 16A | CSA: 16A | ||
| Temperature Range: | -40°C to 125°C | ||||
| Pollution Level: | 3 | ||||
| Dimensioning Transient: | 6 kV | ||||
| Termination: | 0.5 - 2.5 mm2 | AWG 20 - 14 | |||
| Contact Material: | Copper Alloy, silver plated | ||||
| Contact Resistance: | <2mOhm | ||||
| Mating Cycles: | 100 (higher mating cycles depending on the application) | ||||
|
|
|||||
|
Plug
|
Receptacle
|
||||
| Screw Termination with wire protection |
10239010
|
10240010
|
|||
| Screw Termination without wire protection |
10239110
|
10240110
|
|||
|
|
 |
HBE
16 Housings |
|
|
  |
