EPIC® Rectangular Connectors |
HBVE 3 Inserts |
   |
|
 All dimensions in mm. |
View
from Cable Side |
Panel
Cut-Out (Insert Only)  |

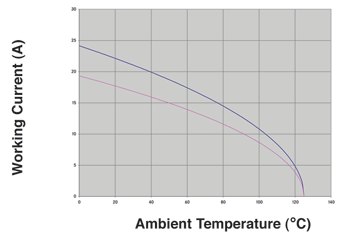

Derating Curve |
 |
Technical Data |
|||||
| Rated Voltage: | UL: 600V | VDE:830V | CSA: 600V | ||
| Rated Current: | UL: 16A | VDE: 16A | CSA:16A | ||
| Temperature Range: | -40°C to 125°C | ||||
| Pollution Level: | 3 | ||||
| Dimensioning Transient: | 6 kV | ||||
| Termination: | 0.5 - 2.5 mm2 | AWG 20 - 14 | |||
| Contact Material: | Copper Alloy, silver plated | ||||
| Contact Resistance: | <2 mOhm | ||||
| Mating Cycles: | 100 (higher mating cycles depending on the application) | ||||
Part Numbers |
||
Plug |
Receptacle |
|
Cage Clamp |
10/210040 |
10/211040 |
 |
Mating Components: |
|
|
|
|
||||||
