EPIC® Rectangular Connectors

HBS 12 Inserts
Screw Terminated Plugs & Receptacles

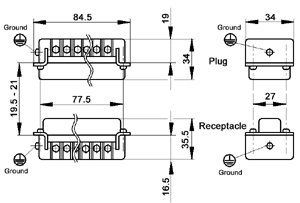

All dimensions in mm.

View from Cable Side

Panel Cut-Out
(Insert Only)

HBS: 6.0 mm2 (10 AWG)


  Rated Voltage: UL: 600V VDE: 400V CSA: 600V
  Rated Current: UL: 35A VDE: 35A CSA: 35A

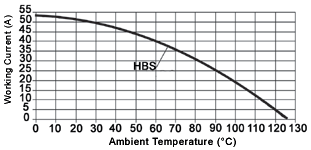

  Temperature Range: -40°C to 125°C
  Pollution Level: 3
  Dimensioning Transient: 6 kV
  Termination: 0.5 - 6.0 mm2 AWG 20 - 10
  Contact Material: Copper Alloy, silver plated
  Contact Resistance: <2mOhm
  Mating Cycles: 100 (higher mating cycles depending on the application)


Plug
Receptacle
Screw Termination with wire protection, #1-6
10170000
10171000
Screw Termination with wire protection, #7-12
10170600
10171600
