EPIC® Rectangular Connectors |

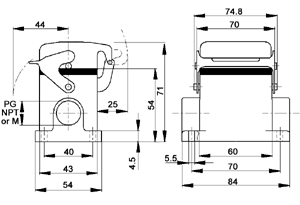

HBE 6 Bases |
   |
 |
 All dimensions are in mm. |
 |
Technical Data |
|||
| Specifications: | DIN 43652 | ||
| Temperature Range: | -40°C to +125°C | ||
| Standard Grey Coating: | |||
 |
Protection Class: | Nema 4, IP 65 | |
|
Material: | Body: Aluminum Alloy, powder coated | |
| Locking Levers & Bolts: zinc plated steel | |||
Part Numbers- PG |
||||
Size
of Entry |
PG |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
21 |
700062 |
- |
- |
29 |
70006400 |
- |
- |
|
 |
||||
1
Entry |
21 |
700052 |
- |
- |
29 |
700054 |
- |
- |
|
With Dust Cover |
||||
2
Entries |
21 |
700162 |
- |
- |
29 |
700164C0 |
 |
|
|
|
||||
1
Entry |
21 |
70015200 |
- |
- |
29 |
70015400 |
- |
- |
|
Part Numbers- NPT |
||||
Size
of Entry |
NPT |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
3/4" |
700062NP |
|
|
1" |
700064NP |
|
|
|
|
||||
1
Entry |
3/4" |
700052NP |
|
|
1" |
700054NP |
|
|
|
With Dust Cover |
||||
2
Entries |
3/4" |
700162NP |
|
|
1" |
700164NP |
|
|
|
|
||||
1
Entry |
3/4" |
700152NP |
|
|
1" |
700154NP |
|
|
|
Part Numbers- METRIC |
||||
Size
of Entry |
Metric |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
25 |
79006200 |
- |
- |
32 |
79006400 |
- |
- |
|
|
||||
1
Entry |
25 |
79005200 |
- |
- |
32 |
79005400 |
- |
- |
|
With Dust Cover |
||||
2
Entries |
25 |
79016200 |
- |
- |
32 |
79016400 |
- |
- |
|
|
||||
1
Entry |
25 |
79015200 |
- |
- |
32 |
79015400 |
- |
- |
|
Metric
Hoods do not come with a neck. |
||||
Mating Components: |
|||||||||
|
|||||||||
|
|
||||||
|
||||||
