NAVIGATE THE CATALOG BY SECTIONS

EPIC® Rectangular Connectors

HBE 6 Inserts
Crimp Terminated Plugs & Receptacles

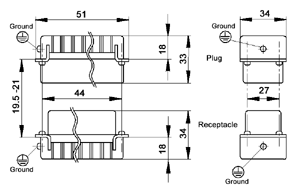

	View from Cable Side Panel Cut-Out (Insert Only)	All dimensions are in mm.
Please note that contacts are sold separately.

Derating Curves
HBE Crimp Terminated: 1.5 mm2 (16 AWG)	HBE Crimp Terminated: 2.5 mm2 (14 AWG)

Technical Data
	Rated Voltage:	UL: 600V	VDE: 500V	CSA: 600V
	Rated Current:	UL: 16A	VDE: 16A	CSA: 16A
	Temperature Range:	-40°C to 125°C
	Pollution Level:	3
	Dimensioning Transient:	6 kV
	Termination:	0.5 - 2.5 mm2		AWG 20 - 14
	Contact Material:	Copper Alloy, silver plated
	Contact Resistance:	<2 mOhm
	Mating Cycles:	100 (higher mating cycles depending on the application)

Part Numbers
	Plug	Receptacle
Crimp Terminated: Machined	10180000	10181000

Contacts HBE Machined Contacts: Diameter 2.5 mm

Bags of 100
		SILVER		GOLD		Stripping Length (mm)	# of Marking Tracks
mm2	AWG	Pin	Socket	Pin	Socket	Stripping Length (mm)	# of Marking Tracks
0.5	20	11190000	11195000	11192000	11197000	Pin= 7.4, Socket= 7.3	-
.75 - 1.0	18	11190100	11195100	11192100	11197100	Pin= 7.4, Socket= 7.3	1
1.5	16	11190200	11195200	11192200	11197200	Pin= 7.4, Socket= 7.3	2
2.5	14	11190300	11195300	-	-	Pin= 7.4, Socket= 7.3	3
4.0	12	11190400	11195400	-	-	Pin= 7.4, Socket= 7.3	-

Tools
			For removal of contacts use a slotted screwdriver. No special tool is necessary.
Locator	Crimp Dies	Crimp Tool
11147200	11147100	11147000

Mating Components:
