EPIC® Rectangular Connectors |

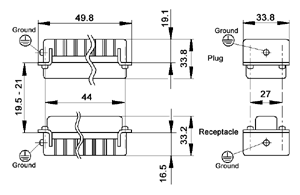

HBE 6 Inserts |
   |
|
View
from Cable Side Panel
Cut-Out |
|
Derating Curves |
|
HBE
Cage Clamp: 1.5 mm2 (16 AWG) |
HBE
Cage Clamp: 2.5 mm2 (14 AWG) |
 |
 |
Technical Data |
|||||
| Rated Voltage: | UL: 600V | VDE: 500V | CSA: 600V | ||
| Rated Current: | UL: 16A | VDE: 16A | CSA: 16A | ||
| Temperature Range: | -40°C to 125°C | ||||
| Pollution Level: | 3 | ||||
| Dimensioning Transient: | 6 kV | ||||
| Termination: | 0.5 - 2.5 mm2 | AWG 20 - 14 | |||
| Contact Material: | Copper Alloy, silver plated | ||||
| Contact Resistance: | <1.5 - 4mOhm | ||||
| Mating Cycles: | 100 (higher mating cycles depending on the application) | ||||
Part Numbers |
||||
Plug |
Receptacle |
|||
Screwless Cage Clamp |
10400000 |
10401000 |
||
Mating Components: |
|
 |
 |
 |
||
