EPIC® Rectangular Connectors

HBE 32 Bases

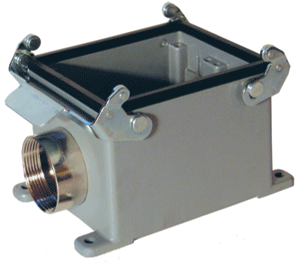

Surface Mount Base: Standard Profile with Double Levers

	All dimensions are in mm.
Dust cover with double lever bolts and attachment string- 10.1420

Technical Data
	Specifications:		DIN 43652
	Temperature Range:		-40°C to +125°C
	Standard Grey Coating:
		Protection Class:	Nema 4, IP 65
		Material:	Body: Aluminum Alloy, powder coated
			Locking Levers & Bolts: zinc plated steel

Part Numbers- PG
	Size of Entry	PG	AUTOCAD-2D	AUTOCAD-3D
2 Entries	21	101380

1 Entry	21	101370

Part Numbers- NPT
	Size of Entry	NPT	AUTOCAD-2D	AUTOCAD-3D
2 Entries	3/4”	101380NP

1 Entry	3/4”	101370NP

Part Numbers- METRIC
	Size of Entry	Metric	AUTOCAD-2D	AUTOCAD-3D
2 Entries	25	19138000	-	-

1 Entry	25	19137000	-	-
Metric Hoods do not come with a neck.

Mating Components:
HBE 32 Top Entry or Side Entry Hoods with Double Lever Bolts
