EPIC® Rectangular Connectors


HBE 32 Bases

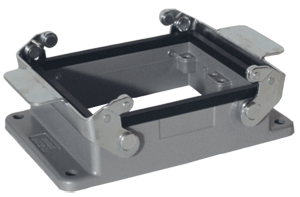

Panel Mount Base with Double Levers

ul csa rohs


All dimensions are in mm.



Dust Cover with double lever bolts and attachment string- 10.1420
Technical Data
  Specifications: DIN 43652
  Temperature Range: -40°C to +125°C
  Standard Grey Coating:
  Protection Class: Nema 4, IP 65
  Material: Body: Aluminum Alloy, powder coated
  Locking Levers & Bolts: zinc plated steel
Part Numbers

AUTOCAD-2D
AUTOCAD-3D
Panel Mount
101320C0


Mating Components:

HBE 32 Top or Side Entry Hoods with Double Lever Bolts

Samplerequest
