EPIC® Rectangular Connectors


HBE 24 Bases
Surface Mount Base: Standard Profile with Single Lever

ul  csa rohs

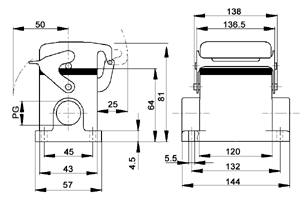

All dimensions are in mm.
Technical Data
  Specifications: DIN 43652
  Temperature Range: -40°C to +125°C
  Standard Grey Coating:
  Protection Class: Nema 4, IP 65
  Material: Body: Aluminum Alloy, powder coated
  Locking Levers & Bolts: zinc plated steel
Part Numbers- PG

Size of Entry
PG
AUTOCAD-2D
AUTOCAD-3D
2 Entries
21
101059
-
-
1 Entry
21
101049
-
-
With Dust Cover

2 Entries
21
101099
-
-
1 Entry
21
101079
-
-

Part Numbers- NPT

Size of Entry
NPT
AUTOCAD-2D
AUTOCAD-3D
2 Entries
3/4”
101059NP
1 Entry
3/4”
101049NP
With Dust Cover

2 Entries
3/4”
101099NP
1 Entry
3/4”
101079NP

Part Numbers- METRIC

Size of Entry
Metric
AUTOCAD-2D
AUTOCAD-3D
2 Entries
25
19105900
-
-
1 Entry
25
19104900
-
-
With Dust Cover

2 Entries
25
19109900
-
-
1 Entry
25
19107900
-
-
Metric Hoods do not come with a neck.

Mating Components:

HBE 24 Top Entry or Side Entry Hoods with Single Lever Bolts
HBE 24 High Profile Top or Side Entry Hoods with Single Lever Bolts

Samplerequest

© 2012 Lapp Group
Lapp Group is not affiliated with Lapp Insulator.
