EPIC® Rectangular Connectors

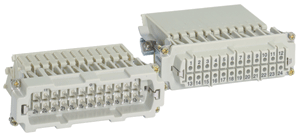

HBE 24 Inserts
Screw Terminated Terminal Block Inserts

ul  csa rohs



View from Cable Side


All dimensions are in mm.

Panel Cut-Out
(Insert Only)

These terminal blocks only fit in HBE 24 panel mount bases.

One terminal block insert mates with one screw terminated insert.
HBE Screw Terminated: 1.5 mm2 (16 AWG)
HBE Screw Terminated: 2.5 mm2 (14 AWG)
Rated Voltage: UL: 600V VDE: 500V CSA: 600V
  Rated Current: UL: 16A VDE: 16A CSA: 16A
Temperature Range: -40°C to 125°C
  Pollution Level: 3
  Dimensioning Transient: 6 kV
  Termination: 0.5 - 2.5 mm2 AWG 20 - 14
  Contact Material: Copper Alloy, silver plated
Contact Resistance: <2 mOhm
Mating Cycles: 100 (higher mating cycles depending on the application)

Receptacle
Terminal Block: Right Ground
70317100
Terminal Block: Left Ground
70316100
HBE 24 Housings
