EPIC® Rectangular Connectors |
HBE 24 Bases |
   |
 |

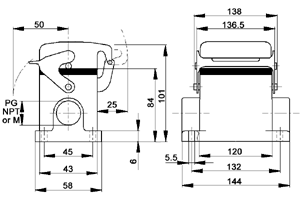

 All dimensions are in mm. |
 |
Technical Data |
|||
| Specifications: | DIN 43652 | ||
| Temperature Range: | -40°C to +125°C | ||
| Standard Grey Coating: | |||
 |
Protection Class: | Nema 4, IP 65 | |
|
Material: | Body: Aluminum Alloy, powder coated | |
| Locking Levers & Bolts: zinc plated steel | |||
Part Numbers- PG |
||||
Size
of Entry |
PG |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
21 |
701612 |
- |
- |
29 |
701614 |
- |
- |
|
 |
||||
1
Entry |
21 |
701602 |
- |
- |
29 |
701604R |
- |
- |
|
With
Dust Cover |
||||
2 Entries |
21 |
701652 |
- |
- |
29 |
701654 |
- |
- |
|
|
||||
1 Entry |
21 |
701642 |
- |
- |
29 |
701644 |
- |
- |
|
Part Numbers- NPT |
||||
Size
of Entry |
NPT |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
3/4" |
701612NP |
 |
|
1" |
701614NP |
|
|
|
|
||||
1
Entry |
3/4" |
701602NP |
|
|
1" |
701604NP |
|
|
|
With
Dust Cover |
||||
2
Entries |
3/4" |
701652NP |
|
|
1" |
701654NP |
|
|
|
|
||||
1
Entry |
3/4" |
701642NP |
|
|
1" |
701644NP |
|
|
|
Part Numbers- METRIC |
||||
Size
of Entry |
Metric |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
25 |
79161200 |
- |
- |
32 |
79161400 |
- |
- |
|
|
||||
1
Entry |
25 |
79160200 |
- |
- |
32 |
79160400 |
- |
- |
|
With
Dust Cover |
||||
2
Entries |
25 |
79165200 |
- |
- |
32 |
79165400 |
- |
- |
|
|
||||
1
Entry |
25 |
79164200 |
- |
- |
32 |
79164400 |
- |
- |
|
Metric
Hoods do not come with a neck. |
||||
Mating Components: |
|||||||||
|
|||||||||
|
|
||||||
|
||||||
