EPIC® Rectangular Connectors |
HBE 16 Bases |
   |
 |
 All dimensions are in mm. |
 |

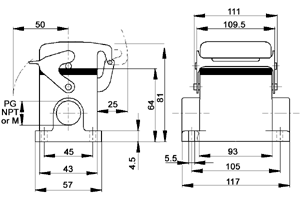

Technical Data |
|||
| Specifications: | DIN 43652 | ||
| Temperature Range: | -40°C to +125°C | ||
| Standard Grey Coating: | |||
 |
Protection Class: | Nema 4, IP 65 | |
|
Material: | Body: Aluminum Alloy, powder coated | |
| Locking Levers & Bolts: zinc plated steel | |||
Part Numbers- PG |
||||
Size
of Entry |
PG |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
21 |
100759 |
- |
- |
 |
||||
1
Entry |
21 |
100749 |
- |
- |
With
Dust Cover |
||||
2
Entries |
21 |
100789 |
- |
- |
|
||||
1
Entry |
21 |
100789 |
- |
- |
Part Numbers- NPT |
||||
Size
of Entry |
NPT |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
3/4" |
100759NP |
 |
|
|
||||
1
Entry |
3/4" |
100749NP |
|
|
With
Dust Cover |
||||
2
Entries |
3/4" |
100789NP |
|
|
|
||||
1
Entry |
3/4" |
100769NP |
|
|
Part Numbers- METRIC |
||||
Size
of Entry |
Metric |
AUTOCAD-2D |
AUTOCAD-3D |
|
2
Entries |
25 |
19075900 |
- |
- |
|
||||
1
Entry |
25 |
19074900 |
- |
- |
With
Dust Cover |
||||
2
Entries |
25 |
19078900 |
- |
- |
|
||||
1
Entry |
25 |
19076900 |
- |
- |
Metric
Hoods do not come with a neck. |
||||
Mating Components: |
|||||||||
|
|||||||||
|
|
||||||
|
||||||
